OUR SOLUTION
WHAT IS PHOTOVOLTAICS 4.0 & WHAT MAKE CLEVER UNIQUE
WHY WE DO WHAT WE DO?
Today, maintenance of a PV plant is mainly done manually or thru indirect monitoring, like drones, which is inefficient and potentially dangerous exposing operator to different hazards like high voltages or really high temperatures, or difficult to manage due to geographical complexity.
HOW WE DO WHAT WE DO?
Clever Dx is a Intelligent Digital Twin composed by two elements:
Our WW patented hardware is plug-and-play and
easy to retrofit and fully compatible with any type
of PV module technology without need of civil
works.
Our propietary software is a multiplatform that allows users remotely and in real-time to monitor and diagnose each PV module in the plant.
Click for Free Self-TrialA complete solution to know what is happening to each panel in the plant.
1 panel - 1 device = 100%
of the plant diagnosed in
real-time
We are the only ones that traces the complete IV curves of each panel in the installation in real-time
WHY WE DO WHAT WE DO?
KNOWING exactly which panels in the installation are defective makes all the difference in the World.

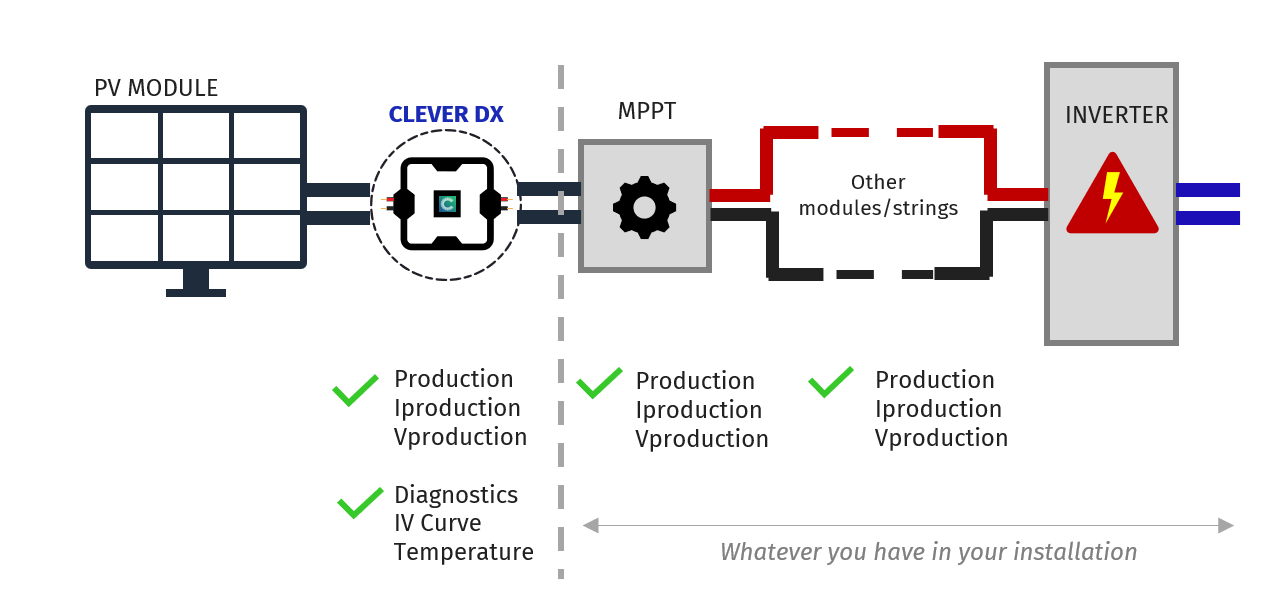

HOW THE DEVICE IS CONNECTED?
A mesh or meshed network is a network made up of a WIFI connection point and the devices that connect through it.
All devices communicate with each other working as signal repeaters, to form a single WIFI network of indefinite size and shape through which all the information flows.
WE ARE UNIQUE
We take the best of all O&M worlds and created something unique combining their benefits.
We are Diagnostics at module level: Production Iproduction Vproduction & IV Curve temperature.
Our solution works independently of the topology of your installation.
Clever Dx
What is it
DIAGNOSTIC DEVICE to characterize the performance of the photovoltaic module.
I's an IV curve plotter and also extracts production information (I, V of Production). It allows remote diagnostics, in real time and without interruptions, and to understand production deviations, even at PV module level.
We also measure production which is only current and voltage, but our magic comes from the DIAGNOSTICS thanks to the automatic and continuous measurement of the IV curves at module level.
The data is sent to our platform allowing an easy and remote diagnosis of all installations in just 3 clicks.
What is not
Transform DC to DC like the MPPTs.
Transform DC to AC like inverters.
Provides indirect information based on production
Iproduction
Vproduction
What is it
One Instant voltage and current value which correspond with 1 working situation on one specific moment
What is not
Measurements to direct characterize PV module behavior
IV Curve
What is it
It is one of the most common methods of determining how a PV module functions.
What is not
Procedure to transform energy
Power Maximizer (MPPT @ PV module)
What is it
At module level (Optimizer): These adapt the PV module to a maximum operating point (I,V of production) and the measurement corresponds to this single operating point. It transforms DC to DC.
What is not
Characterize behavior of PV module. IV curve tracer.
Power Maximizer (MPPT @ inverter)
What is it
At inverter level: It adapts the photovoltaic string to the working conditions of a single maximum point (I,V of production). But, the maximum of the string IS NOT the maximum of each PV module separately. That point may not be real.
What is not
MPPT @ PV module level. The maximum of the string IS NOT the maximum of each PV module.
Micro-Inverter
What is it
Micro-inverters transform DC current into AC and provide single point measurements (I, V of production).
What is not
Characterize behavior of each PV module connected. IV curve tracer.
